Model::StructureFieldImpl Struct Reference

#include <StructureField.hpp>

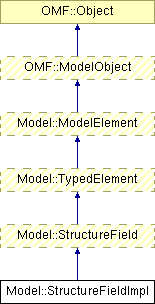

Inheritance diagram for Model::StructureFieldImpl:

List of all members.

---

Detailed Description

Implementation of StructureField.

Public Types
typedef OMF::BasicClass< StructureFieldImpl >	Proxy
typedef OMF::BasicClass< TypedElement, OMF::Abstract >	Class
Public Member Functions
	StructureFieldImpl ()
virtual	~StructureFieldImpl ()
Classifier *	type ()
void	setType (Classifier *type)
void	clearType ()
const OMF::String &	name () const
void	setName (const OMF::String &name)
void	clearName ()
const OMF::String &	annotation () const
void	setAnnotation (const OMF::String &annotation)
void	clearAnnotation ()
const OMF::Set &	requiredElements () const
void	addRequiredElements (ModelElement *element)
void	removeRequiredElements (ModelElement *element)
void	clearRequiredElements ()
const OMF::Set &	constraints () const
void	addConstraints (Constraint *constraint)
void	removeConstraints (Constraint *constraint)
void	clearConstraints ()
Namespace *	container ()
void	setContainer (Namespace *container)
void	clearContainer ()
const OMF::List &	qualifiedName ()
OMF::Set	findRequiredElements (const OMF::Set &kinds, const OMF::Boolean &recursive)
OMF::Boolean	isRequiredBecause (ModelElement *otherElement, OMF::String &reason)
OMF::Boolean	isFrozen ()
OMF::Boolean	isVisible (ModelElement *otherElement)
virtual unsigned	hashCode () const
virtual const std::string &	typeCode () const
const std::string	id () const
void	setId (const std::string &id)
void	incRef ()
void	decRef ()
void	purge ()
ModelObject *	parent ()
void	setParent (ModelObject *parent)
Model *	model ()
void	setModel (Model *model)
const std::vector< Property * > &	propertyList () const
const std::map< std::string, Property * > &	allProperties () const
bool	hasProperty (const std::string &name) const
Property *	getProperty (const std::string &name) const
Object *	get (const std::string &name)
void	set (const std::string &name, Object *value)
void	add (const std::string &name, Object *value)
void	remove (const std::string &name, Object *value)
void	clear (const std::string &name)
void	extend (Extension *ext)
template<class Type> void	extendWith (const std::string &name, Type &value)
template<class Type> void	extendWith (const std::string &name)
bool	hasExtension (const std::string &name)
Extension *	extension (const std::string &name)
void	removeExtension (const std::string &name)
Class *	proxy ()
Package *	decl ()
ModelObject *	metaObject ()
Protected Member Functions
Property &	defProperty (const std::string &name)

---

Member Typedef Documentation

typedef OMF::BasicClass<TypedElement, OMF::Abstract> Model::TypedElement::Class [inherited]

typedef OMF::BasicClass<StructureFieldImpl> Model::StructureField::Proxy [inherited]

Reimplemented from Model::ModelElement.

---

Constructor & Destructor Documentation

Model::StructureFieldImpl::StructureFieldImpl (   )

virtual Model::StructureFieldImpl::~StructureFieldImpl (   )  [virtual]

---

Member Function Documentation

void OMF::ModelObject::add (  const std::string &  name, Object *  value )  [inherited]

Add the value of a named property.

void Model::ModelElement::addConstraints (  Constraint *  constraint  )  [inherited]

void Model::ModelElement::addRequiredElements (  ModelElement *  element  )  [inherited]

const std::map<std::string, Property *>& OMF::ModelObject::allProperties (   )  const [inherited]

Return all properties.

const OMF::String& Model::ModelElement::annotation (   )  const [inherited]

void OMF::ModelObject::clear (  const std::string &  name  )  [inherited]

Clear the value of a named property.

void Model::ModelElement::clearAnnotation (   )  [inherited]

void Model::ModelElement::clearConstraints (   )  [inherited]

void Model::ModelElement::clearContainer (   )  [inherited]

void Model::ModelElement::clearName (   )  [inherited]

void Model::ModelElement::clearRequiredElements (   )  [inherited]

void Model::TypedElement::clearType (   )  [inherited]

const OMF::Set& Model::ModelElement::constraints (   )  const [inherited]

Namespace* Model::ModelElement::container (   )  [inherited]

Package* OMF::ModelObject::decl (   )  [inherited]

Returns package that declares this class of this object.

void OMF::ModelObject::decRef (   )  [inherited]

Property& OMF::ModelObject::defProperty (  const std::string &  name  )  [protected, inherited]

Provided so derived classes can add properties. This returns the newly allocated property object so it can be altered in a chained method x().y().z().

void OMF::ModelObject::extend (  Extension *  ext  )  [inherited]

Extend the object with a new property. This entails the external construction of the extension that will be used by the model object. This is more useful for specialized extensions.

template<class Type> void OMF::ModelObject::extendWith (  const std::string &  name  )  [inherited]

This method is like the above, but the caller does not need a default value for the extension.

template<class Type> void OMF::ModelObject::extendWith (  const std::string &  name, Type &  value )  [inherited]

This method is much like the first but internalizes the construction of the extension element. It uses the basic extension class and wraps the given value.

Extension* OMF::ModelObject::extension (  const std::string &  name  )  [inherited]

Get the named extension property.

OMF::Set Model::ModelElement::findRequiredElements (  const OMF::Set &  kinds, const OMF::Boolean &  recursive )  [inherited]

This operation selects a subset of model elements that this element depends on. The kinds parameter gives the kinds of depencies of interest to the caller. Note that the values of the kinds parameter are defined by the standard constants in the MOF defined in [3.8]. If the recursive parameter is true, this method returns the transitive closure of the DependsOn association (all dependencies for the specified kinds). Parameters: kinds  The kinds of dependencies to return recursive  If true, compute the transitive closure Returns: The discovered dependencies.

Object* OMF::ModelObject::get (  const std::string &  name  )  [inherited]

Get a named property of the object.

Property* OMF::ModelObject::getProperty (  const std::string &  name  )  const [inherited]

This method is used to return the property object for the requested name. This can be useful if the client needs to test some of the capabilities of the property prior to manipulating it.

bool OMF::ModelObject::hasExtension (  const std::string &  name  )  [inherited]

Does the object support a named extension?

virtual unsigned OMF::ModelObject::hashCode (   )  const [virtual, inherited]

Hash codes for model objects are the integer representation of the this pointer. The pointer value is actually the identity of the object, so it seems like a good solution for hashing. Implements OMF::Object.

bool OMF::ModelObject::hasProperty (  const std::string &  name  )  const [inherited]

This method is used to query whether or not a property is actually defined for this object. Note that we can't just test using get because the property may exist, but be a null pointer.

const std::string OMF::ModelObject::id (   )  const [inherited]

Return the id of this object. Can be empty.

void OMF::ModelObject::incRef (   )  [inherited]

OMF::Boolean Model::ModelElement::isFrozen (   )  [inherited]

Reports the "freeze" status of a model element. All model elements of a published model (such as this) are frozen. In effect, this method will always return false because I don't care about freeze status. Returns: Always false.

OMF::Boolean Model::ModelElement::isRequiredBecause (  ModelElement *  otherElement, OMF::String &  reason )  [inherited]

This operation performs two functions. It checks whether the model element depends on the given element. If so, the method returns true. Also, If there is a dependency, the operation sets the reason parameter to the kind of dependency. Parameters: otherElement  The element to check for dependence reason  The reason for the dependence if there is a dependency. Returns: True if there is a dependency.

OMF::Boolean Model::ModelElement::isVisible (  ModelElement *  otherElement  )  [inherited]

This method always returns true (as per the standard) and is reserved for future use (which it never was used). Theoretically, we could implement it to determine whether the given element is visible from this element. In other words, there is a path through the containment tree from this element to the other that is not blocked by private visibilities. Parameters: otherElement  the element to deterimine visibility for Returns: Always true

ModelObject* OMF::Object::metaObject (   )  [inherited]

Return the meta-object of this instance. The meta-object is an instance of the metaclass of this object. For example, the metaclass of UML::Attribute is Model::Class. The metaobject for an instance of UML::Attribute is an instance of Model::Class. This method may force a load of an entire metamodel in order to return the correct object.

Model* OMF::ModelObject::model (   )  [inherited]

Return the model that owns this object.Note that this method can return null... in the case where this happens, we're really dealing with fragments of models. However, inserting the fragment into a model will resolve the ownership of the element.

const OMF::String& Model::ModelElement::name (   )  const [inherited]

ModelObject* OMF::ModelObject::parent (   )  [inherited]

Return the owner of this object or - the parent in the containment tree (after which the method is named). Reimplemented in UML::Generalization.

const std::vector<Property *>& OMF::ModelObject::propertyList (   )  const [inherited]

Return a list of properties (ordered by definition). This method shouldn't really be used. It's kind of a hack that's been added to support XMI 1.2 field referencing for structure types.

Class* OMF::ModelObject::proxy (   )  [inherited]

Get the class proxy for this model object.

void OMF::ModelObject::purge (   )  [inherited]

The purge method is a work-around for cases where the object must be deleted immediately (such as composite aggregation). This method deletes this object. Do not refer to it after calling this method.

const OMF::List& Model::ModelElement::qualifiedName (   )  [inherited]

While the qualifiedName is typically described as an attribute of a model element, it's actually easier to just compute the list. Note that the qualified name is recomputed and stored locally every time this method is invoked. Also, this method is part of a read-only property.

void OMF::ModelObject::remove (  const std::string &  name, Object *  value )  [inherited]

Remove a value from a named property.

void Model::ModelElement::removeConstraints (  Constraint *  constraint  )  [inherited]

void OMF::ModelObject::removeExtension (  const std::string &  name  )  [inherited]

Remove the named extension.

void Model::ModelElement::removeRequiredElements (  ModelElement *  element  )  [inherited]

const OMF::Set& Model::ModelElement::requiredElements (   )  const [inherited]

void OMF::ModelObject::set (  const std::string &  name, Object *  value )  [inherited]

Set the value of a named property.

void Model::ModelElement::setAnnotation (  const OMF::String &  annotation  )  [inherited]

void Model::ModelElement::setContainer (  Namespace *  container  )  [inherited]

void OMF::ModelObject::setId (  const std::string &  id  )  [inherited]

Never, ever call this method. It is used internally by this class and the Model class to set the ids for objects that are used during serialization.

void OMF::ModelObject::setModel (  Model *  model  )  [inherited]

This method should only ever be called from within the model class and only when a new top-level object is assigned to the model.

void Model::ModelElement::setName (  const OMF::String &  name  )  [inherited]

void OMF::ModelObject::setParent (  ModelObject *  parent  )  [inherited]

Set the parent in the containment tree. Note that this method should only ever be called by a reference mutator. It should not be the job of the client to manage containment relations. This method will recursively set the model for all owned elements of this object to the model of the owning object. It will also reallocate ids (if the parent has a model).

void Model::TypedElement::setType (  Classifier *  type  )  [inherited]

Classifier* Model::TypedElement::type (   )  [inherited]

virtual const std::string& OMF::ModelObject::typeCode (   )  const [virtual, inherited]

The typecode of a model object is the name of the model object's class. Implements OMF::Object.

---

The documentation for this struct was generated from the following file:

• StructureField.hpp

---
